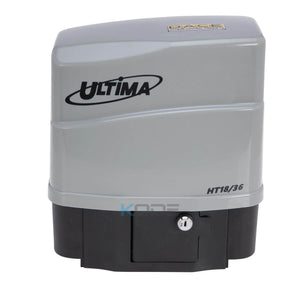

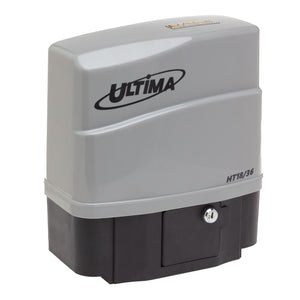

DACE | Ultima HT18/36 Gate Operator

The DACE Ultima HT 18/36 is the follow up to the hugely successful Condo motor, taking its name from its running speed at 18 meters per minute at 12 volt or 36 meters per minute at 24 volt.

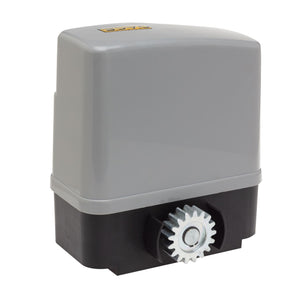

The HT 18/36 Automatic gate opener can handle gates up to 11m long and 600kg in weight. Reinforced with a steel drive cog this High Traffic Residential electric slide gate opener uses a combination of advanced technology and timeless design to support the day-to-day activities of residential properties

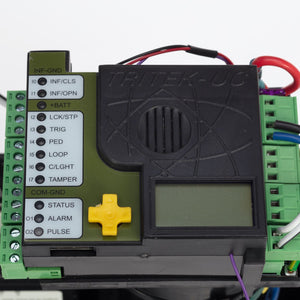

Some of the amazing new features of this model are adjustable operating speeds, an interactive voice guided control board and a USB port for on site updates a downloading operating logs for trouble shooting, just to name a few.

Features:

• Over 300 menu items
• Large graphics display
• On-board help screens
• 8 inputs and 5 outputs
• 6 different sleep modes
• Navigate menu via joystick
• Multiple security functions
• Over 190 intuitive menu icons
• Quick nav screen for easy selection
• Program up to 16,000 remote buttons
• Automatic 12/24V charging selection
• Time manager controls up to 840 events
• 15 channel on-board code hoping receiver
• On site software updates via USB or Android
• Ultra energy efficient, consumes 0.1W in sleep mode
• Download up to 1024 logged events to USB or Android
• Voice prompts to simplify installation and fault finding

Inclusions

• 1 x DACE Ultima 18/36 gate motor Only
• 2 x DACE EXO Four Button remotes
• 1 x Low voltage transformer
• 1 x Owners Manual

Ad-Ons

• 12V 7ah Battery
• DACE Wired or Wireless Photo Eye Beams (Recommended)
• Solar Upgrade Kit

All DACE Gate Openers should be installed by a qualified Automatic Gate Installer or Electrician
